ESSE Engineering Ltd

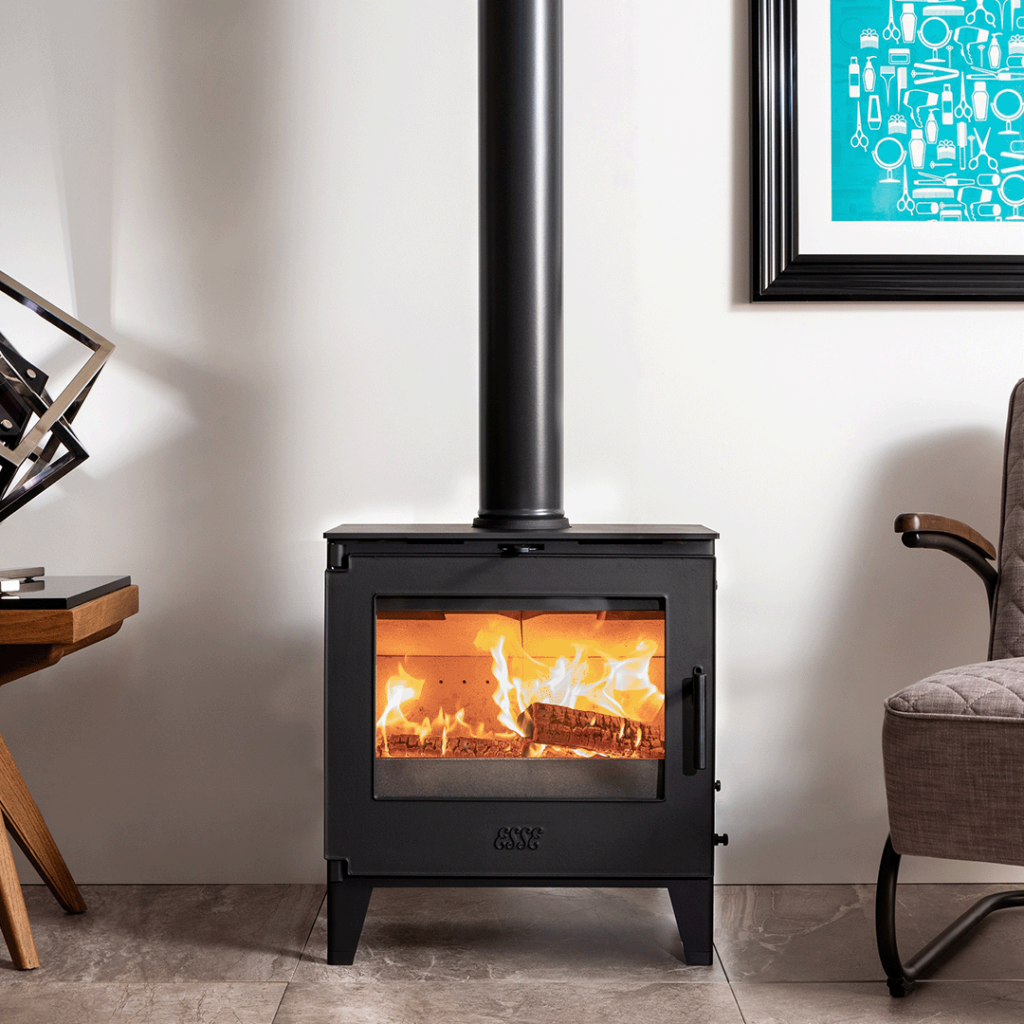

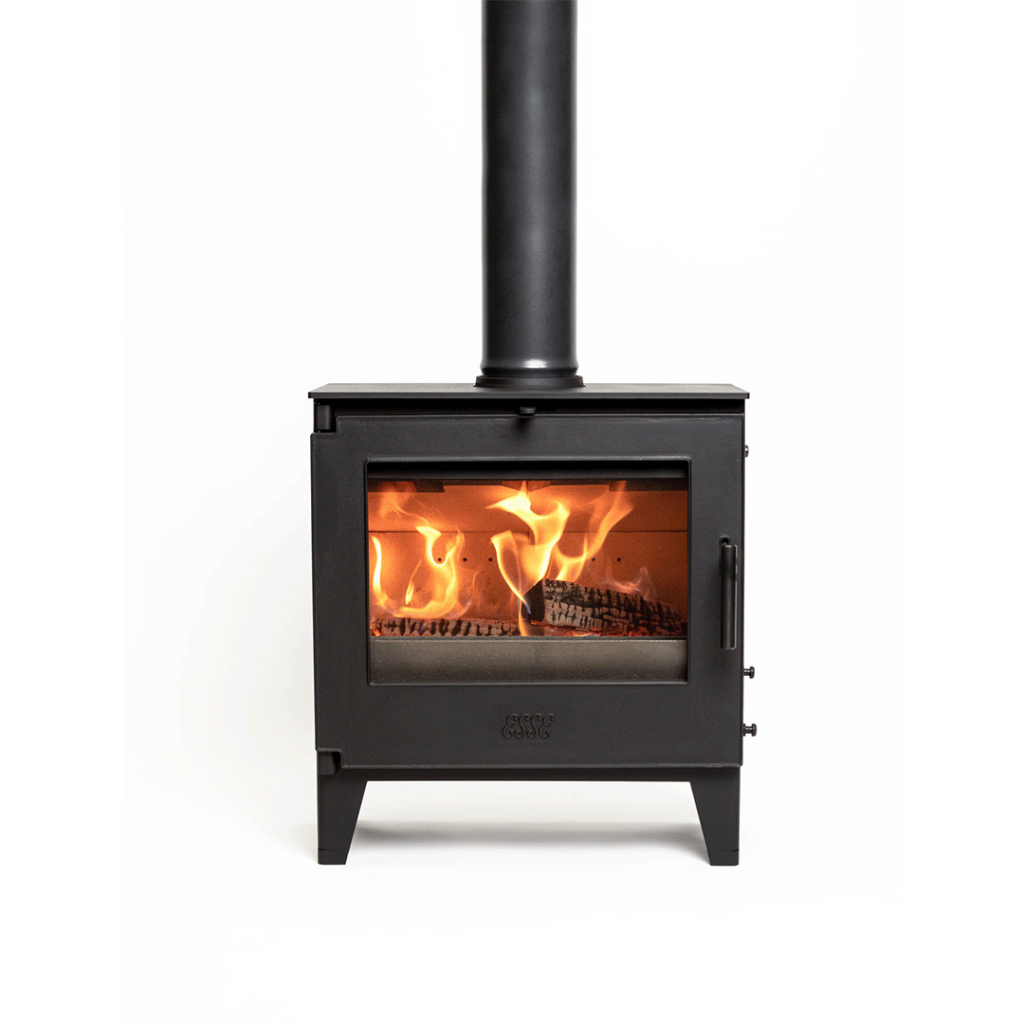

ESSE 155

HETAS ID:	E22692
App. Type:	Roomheaters
Fuel Type:	Wood Logs
Certificate Ref:	AA-2023-09/08
Std. Tested to:	BS EN 13240:2001 + Amendment A2:2004
Hearth Req:	Constructional

Manufacturer Address:	ESSE Engineering Ltd, Long Ing, Barnoldswick, Lancashire, BB18 6BJ
Manufacturer Email:	[email protected].
Telephone Number:	01282 813 235

Performance

HETAS has audited and verified that all applicable clauses in the test report have been passed in respect of the materials, design, and construction in accordance with the relevant BS EN type test standard for the appropriate technology, performance criteria of which is below;

Nominal Output - Wood Logs	5.0KW
Net Efficiency - Wood Logs	83.7%
Gross Efficiency - Wood Logs	76.2%

Environment

In support of reducing the impacts of particulate emissions on the UK's overall air quality targets, HETAS “Cleaner Choice” appliances have been independently verified as exceeding the current requirements for UK smoke control areas for particulate matter, including PM2.5's by 50% of that required by DEFRA;

63%

Improvement on Clean Air Act Particulate Limit – Full Load

Improvement on Clean Air Act Particulate Limit – Part Load

Safety

The product certified has been assessed for its suitability for installation in domestic properties against the requirements of the Building Regulations and appropriate standards. The performance of the appliance has been verified as meeting the following technical performance attributes;

Combustible Clearances - Rear	600 mm
Combustible Clearances - Side	600 mm
Hearth Temperature	> 92
Appliance Spigot SIze	125 mm
Minimum Flue Diameter	125 mm
Recomended Flue Draught	12Pa
External Air Supply Compatible	*No
Tool Required for Refue/De-Ash	Yes
Flue Draught test Point	Yes

*HETAS product approval is not valid for appliances fitted with an external air supply ducted directly to the appliance. The installer should reference HETAS technical note TN_0020 General Guidance for the Installation, Risk Assessment & Commissioning of Solid Fuel Appliances with a Dedicated External Air Supply for more information.

Technical Data

The purpose of this HETAS Stove Approval Scheme is to help consumers, retailers, installers and others to identify stoves with lower particulate (PM) emissions. There are concerns that small particle emissions known as PM2.5 to PM10 can be harmful. For that reason, we are operating a scheme which only accepts appliances that are tested to emit lower emissions compared to the current legal requirements. We have chosen to set the bar for entry at 50% less emissions than required for exemption for use in smoke control areas in the UK. We also note that Ecodesign legislation has differing, but important limits for other emission and any appliances listed here must meet those requirements as well as exceeding the particulate emission values for exemption by at least 50%.

Additionally, the product certified has been assessed for its compliance against the legal requirements for emissions and efficiency stipulated within the Ecodesign regulations. The performance of the appliance has been verified as meeting the following environmental attributes;

PM - Wood Logs	14 mg/m3
OGC Emissions - Wood Logs	82 mg/m3
CO Emissions - Wood Logs	250 mg/m3
NOx Emissions - Wood Logs	79 mg/m3
Seasonal Efficiency - Wood Logs	73.7%
Energy Label Ratings	A+
