Carron Stoves

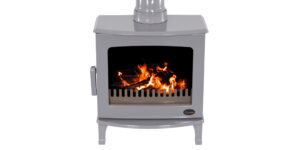

Carron Revolution 8

HETAS ID:	E22762
App. Type:	Roomheater
Fuel Type:	Wood Logs
Certificate Ref:	CC-2024-01/01
Std. Tested to:	EN 13240
Hearth Req:	Single Sheet

Performance

HETAS has audited and verified that all applicable clauses in the test report have been passed in respect of the materials, design, and construction in accordance with the relevant BS EN type test standard for the appropriate technology, performance criteria of which is below;

Nominal Output - Wood Logs	8KW
Net Efficiency - Wood Logs	77.7%
Gross Efficiency - Wood Logs	70.7%

Environment

In support of reducing the impacts of particulate emissions on the UK's overall air quality targets, HETAS “Cleaner Choice” appliances have been independently verified as exceeding the current requirements for UK smoke control areas for particulate matter, including PM2.5's by 50% of that required by DEFRA;

Safety

The product certified has been assessed for its suitability for installation in domestic properties against the requirements of the Building Regulations and appropriate standards. The performance of the appliance has been verified as meeting the following technical performance attributes;

Combustible Clearances - Rear	420 mm
Combustible Clearances - Side	380 mm
Appliance Spigot SIze	130 mm
Minimum Flue Diameter	125 mm
Recomended Flue Draught	12Pa
External Air Supply Compatible	*N/A
Tool Required for Refue/De-Ash	Yes
Flue Draught test Point	N/A

*HETAS product approval is not valid for appliances fitted with an external air supply ducted directly to the appliance. The installer should reference HETAS technical note TN_0020 General Guidance for the Installation, Risk Assessment & Commissioning of Solid Fuel Appliances with a Dedicated External Air Supply for more information.

Technical Data

The purpose of this HETAS Stove Approval Scheme is to help consumers, retailers, installers and others to identify stoves with lower particulate (PM) emissions. There are concerns that small particle emissions known as PM2.5 to PM10 can be harmful. For that reason, we are operating a scheme which only accepts appliances that are tested to emit lower emissions compared to the current legal requirements. We have chosen to set the bar for entry at 50% less emissions than required for exemption for use in smoke control areas in the UK. We also note that Ecodesign legislation has differing, but important limits for other emission and any appliances listed here must meet those requirements as well as exceeding the particulate emission values for exemption by at least 50%.

Additionally, the product certified has been assessed for its compliance against the legal requirements for emissions and efficiency stipulated within the Ecodesign regulations. The performance of the appliance has been verified as meeting the following environmental attributes;

PM - Wood Logs	20 mg/m3
OGC Emissions - Wood Logs	42 mg/m3
CO Emissions - Wood Logs	715 mg/m3
NOx Emissions - Wood Logs	74 mg/m3
Seasonal Efficiency - Wood Logs	67.7%
Energy Label Ratings	A
